Module: AS91883 Develop a computer program
Requirements: using methods, functions, procedures, actions, conditions and control structures effectively, checking input data for validity, input from a user, user-defined methods, functions or procedures.
Go to topOn completion of this page you will know how to:
This group of pages can be used to add polish to the module AS 91883Develop a computer program but its main goal is to lay down the foundation for the requirements of AS91886 Demonstrate understanding of human computer interaction.
There is a limit to how much we can add to the usability of a programme as we are still in the early stages of learning the skill of programming. However there are still some basic types of human error that we can prevent, and we shall be looking at that in these pages.
We shall begin by looking at a program with no consideration for human interface to see what errors can creep into such a program. We can then look at how some of those errors can be prevented.
Go to topFor our guidance we shall be using some of the ten heuristics originally developed by Jakob Nielsen in the mid 1990's. The ones we shall be using are:
Below is a simple payroll calculation program with minimum functionality. Despite this we can see that some of the heuristics mentioned above can be found here.
#declaration of variables
fltHours=0.0
fltRate=0.0
fltSuper=0.0
fltGross=0.0
fltTax=0.0
fltNet=0.0
fltSuper=0.0
intSuperCode=0
#user input
fltHours = float(input("Enter value for hours worked. Value must be between 5 and 60 :"))
fltRate = float(input("Enter value for rate. Value must be between 20 and 80 :"))
intSuperCode = int(input("Enter superannuation code. Value must be one of 0, 1, 2 or 3 :"))
#calculation
fltGross = fltHours * fltRate
fltTax = fltGross * 0.25;
if intSuperCode == 0:
fltSuper = 0
elif intSuperCode == 1:
fltSuper = fltGross * 0.05
elif intSuperCode == 2:
fltSuper = fltGross * 0.1
elif intSuperCode == 3:
fltSuper = fltGross * 0.15
else:
print("Wrong value for super code")
fltNet = fltGross - fltTax - fltNet - fltSuper
#display results
print("Gross: ", fltGross)
print("Tax: ", fltTax)
print("Super ", fltSuper)
print("Net: ", fltNet)
#Save calculated data to a file
myfile=open('Payroll File.txt','a')
myfile.write(str(fltHours) +"\n")
myfile.write(str(fltRate) +"\n")
myfile.write(str(fltGross) +"\n")
myfile.write(str(fltTax) +"\n")
myfile.write(str(fltNet) +"\n")
myfile.close()
print("Data has been saved to the file")
Lines 11 to 13 allow the user to enter data. At each line the input prompt specifies what data is expected and what range of values are expected for each input. This is stated in clear simple language that any payroll officer would understand. Thus heuristic #2 is satisfied.
The same prompts also satisfy heuristic #6 because they all specify the allowed values for each item. This saves the user from having to remember such data.

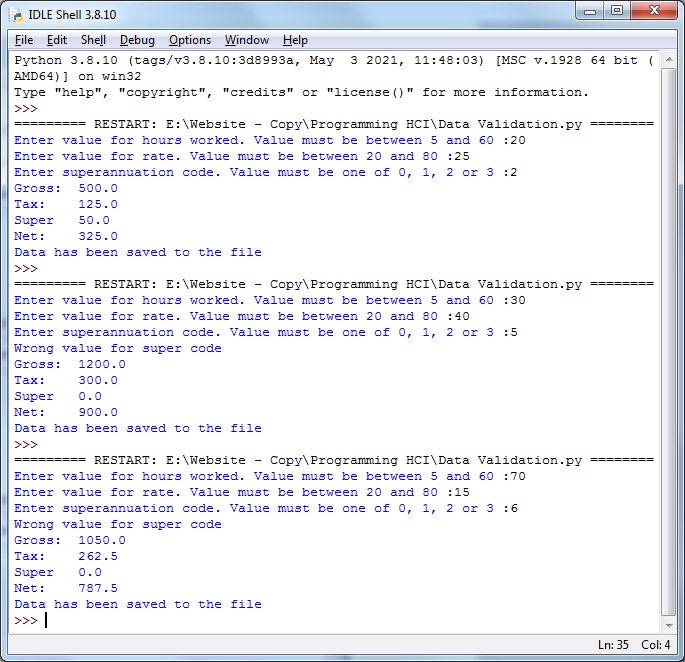

Let us now look at some of the output of the program and determine where we are failing the user as regards the five heuristics mentioned above.
In the first running correct data has been entered. The value for the hours, 20, is between the limits 5 and 60. The value for rate is similarly between its own limits. Also the superannuation code has a value of 2, which is one of the four values allowed.
In the second running the values for hours and rate are still fine. The value of the super code is 5, which is outside of the given range. An error message has been printed but the program still went ahead and calculated the rest of the payroll data.
In the third running, all of the user inputs are outside the allowed ranges, but the invalid data was processed and saved to the file.
Go to topSince we are dealing with a very simple program here, there is a limit on the interaction that we shall have with the underlying system. The sole exception in this case is saving data to a text file.
This is a very fast and silent process and therefore it happens without us noticing it. As saving data regularly is crucial to any application we must ensure that the user is always made aware if each saving to the text file. This is done by simply printing a message 'Data has been saved to the file'.
As applies to our example program here the requirements of Heuristic #1 have been met.
Go to topIn lines 11 to 13 we have communicated with the user in jargon free everyday language. We have described the type and purpose of each data item. We have also described the maximum and minimum values associated with each data item.
Within the limitations of our example program here the requirements of Heuristic #2 have been met.
Go to topIf we assume a data entry person is entering data for a number of employees and is reading the data from a printout. There is always a chance that the person who produced the printout may have accidentally left out a digit or added an extra digit to a person's hourly rate. This could have the effect of changing $24 to $2 or else changing it upwards to $244. For the data entry person to spot this then they would need to know the maximum and minimum values allowed for the hourly rate. Rather than having to search their memories or go through a voluminous journal we use the input prompt to remind them what those maximum and minimum values are. For this reason each of the prompts has its own set of minimum and maximum values.
Within the limitations of our example program here the requirements of Heuristic #6 have been met.
Go to topAlthough our program is as simple and basic as a program can be we still have managed to apply three of our proposed five heuristics to it. This included informing the user whenever data is saved to the file and using plain everyday language when communicating with the user.
Looking at Fig 1 above we see that we have some distance to go yet to improve the user interface so that out of range data will be blocked from the user. On the next page we shall look at how that can be done.
Go to topThis assignment focuses on analyzing and improving a simple payroll program by applying usability heuristics and structured programming concepts. The task will require you to examine the existing program, evaluate its interface using usability heuristics, and implement enhancements to make it more user-friendly and maintainable. The assignment also involves validating user inputs and utilizing structured programming principles for clear and efficient code.
The provided program calculates sales total and Goods and service tax based on user inputs, such as description of item purchased, cost of item and amount sold. Despite its simplicity, it illustrates key challenges in user interface design, such as error prevention, effective communication, and user assistance. These challenges can be addressed by applying Jakob Nielsen's usability heuristics, such as visibility of system status, error prevention, and recognition rather than recall.
def process_sales_transaction():
description = input("Item description: ")
cost_per_item = float(input("Cost per item: "))
amount_purchased = int(input("Amount purchased: "))
total_sales_value = cost_per_item * amount_purchased
gst = total_sales_value * 0.15
grand_total = total_sales_value + gst
print("\nSummary")
print(f"Item: {description}")
print(f"Amount: {amount_purchased}")
print(f"Total: ${total_sales_value:.2f}")
print(f"GST: ${gst:.2f}")
print(f"Grand Total: ${grand_total:.2f}")
def main():
process_sales_transaction()
Review the provided code snippet for a simple purchasing program. Identify areas where the code supports or violates the following usability heuristics:
Write a brief report (200–300 words) summarizing your observations.
Using the principles outlined in the lesson, rewrite the program to include robust input validation using while loops. Ensure that the program:
Provide sample outputs demonstrating the program's behavior with invalid and valid inputs.
Refactor the program to use functions for modularity and readability. Include the following:
Ensure the main program uses a main() function to orchestrate the workflow. Include docstrings for each function describing its purpose and parameters.
Write a reflection (150–200 words) on how the updated program addresses the usability issues identified in Part 1. Highlight how the changes satisfy usability heuristics, focusing on error prevention and user feedback.
This assignment allows you to explore how programming and usability principles intersect to create applications that are both functional and user-friendly. It encourages critical thinking about user interfaces and the development of structured, maintainable, and efficient code.
